Steel Cord Conveyor Belt

1.The carcass has a layer of longitudinally arranged steel cords as its skeleton.2.Thus characterized High tensile strength,Small elongation in use,resistant to flex fatigue,good troughability.3.The steel cords are very evenly arranged and have the same tension, so the belts are we

Send Inquiry

Product Description

Product Description

Steel cord conveyor belts are suitable for high strength, long distance, and heavy load transportation of materials, which are widely used in coalmines, mines, ports, metallurgy, electricity, chemical industries, etc.

Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.Din X standard tear resistance steel cord conveyor belt is the best choice.


Features:

1. High tensile strength:Steel cord conveyor belt is suitable for large span,long distance transportation of materials

2. Small elongation in use:The belts need only a very short take-up stroke distance.

3. Small diameter of drive pulley:Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton,and thus is resistant to flex fatigue.Therefore,drive pulley of smaller diameter can be used to make the equipment smaller.

4.High adhesion between rubber and steel cord:The steel cords are coated with zinc on their surface,and also the rubber used has the property of qood adhesion with steel cords.Therefore,the rubber is tighrly adhered to the steel cords and is resistant to shock and difficult to drop,so the rubber belts are long in service life.

5. Even tension of steel cords: Out of our advanced techniques in manufacturing, the steel cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run deviation.

6. Good troughability: As the carcass has no transverse skeleton, it is easy to form a deep trough, so the belts can load more materials and prevent the materials from escaping.

7. Inspection of the belt with X-rays: Users can take X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happeni.

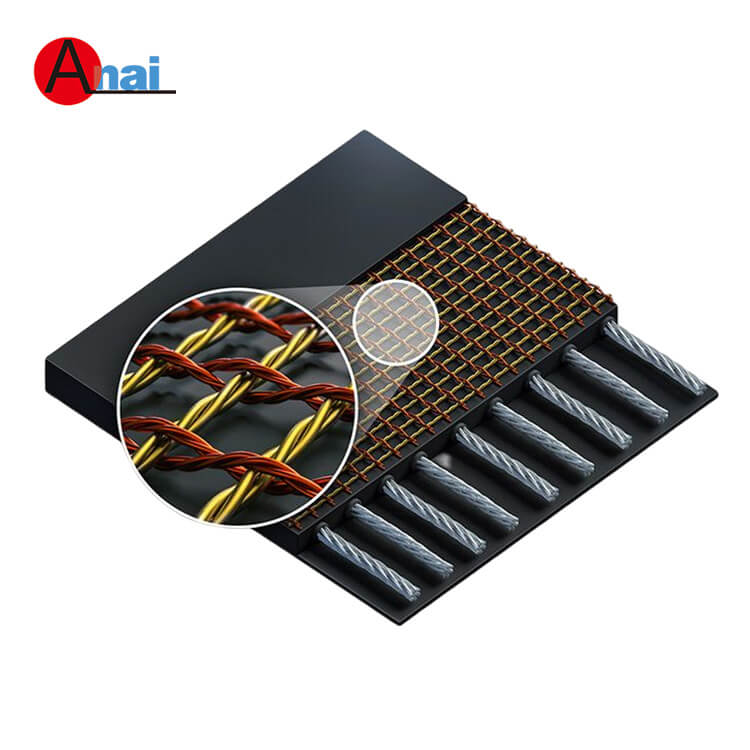

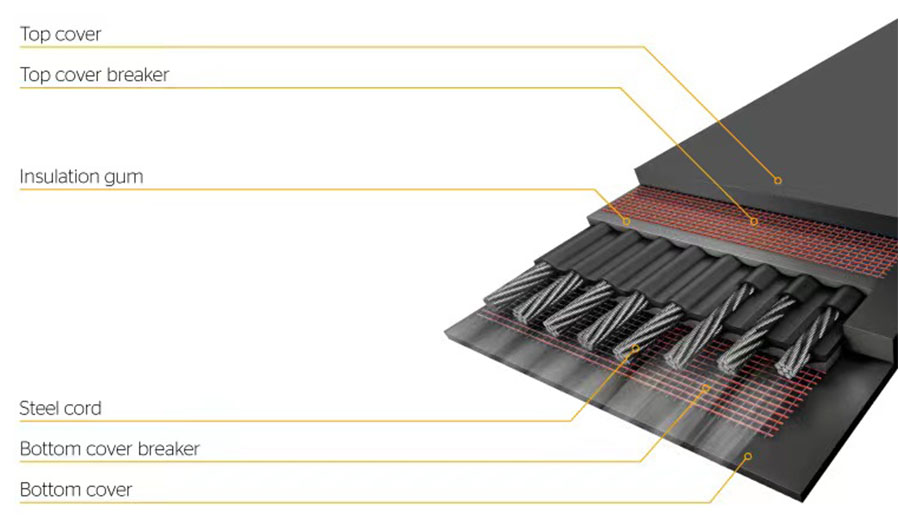

8. The carcass has a layer of longitudinally arranged steel cords as its skeleton.

9. Thus characterized High tensile strength,Small elongation in use,resistant to flex fatigue,good troughability.

10. The steel cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run deviation.

11. Suitable for high strength, long distance, and heavy load transportation of materials

12. widely used in coalmines, mines, ports, metallurgy, electricity, chemical industries, etc.


Belt type

ST630

ST800

ST1000

ST1250

ST1600

ST2000

ST2500

ST2800

ST3150

ST3500

ST4000

ST4500

ST5000

ST5400

Min. tensile strength (N/mm)

630

800

1000

1250

1600

2000

2500

2800

3150

3500

4000

4500

5000

5400

Max. diameter of steel cord (mm)

3.0

3.5

4.0

4.5

5.0

6.0

7.2

7.2

8.1

8.6

8.9

9.7

10.9

11.3

Min. breaking force of steel cord (kN)

7.0

8.9

12.9

16.1

20.6

25.6

40.0

39.6

50.5

56.0

63.5

76.3

91.0

98.2

Steel cord pitch (mm)

10.0

10.0

12.0

12.0

12.0

12.0

15.0

13.5

15.0

15.0

15.0

16.0

17.0

17.0

Min. Top/Bottom cover thickness (mm)

4.0

4.0

4.0

4.0

4.0

4.0

5.0

5.0

5.5

6.0

6.5

7.0

7.5

8.0

Belt width

Number of steel cord

650

60

60

51

51

51

52

41

46

41

41

41

39

36

N/A

800

75

75

63

63

63

63

50

57

50

50

51

48

45

45

1000

95

95

79

79

79

79

64

71

64

64

64

59

55

55

1200

113

113

94

94

94

94

76

85

76

77

77

71

66

66

1400

133

133

111

111

111

111

89

99

89

90

90

84

78

78

1600

151

151

126

126

126

126

101

114

101

104

104

96

90

90

1800

171

171

143

143

143

143

114

128

114

117

117

109

102

102

2000

191

191

159

159

159

159

128

143

128

130

130

121

113

113

2200

211

211

176

176

176

176

141

158

141

144

144

134

125

125

Note: N/A (not available), because of troughability.
