Cold Resistant Conveyor Belt

1.Selects nylon canvas or EP canvas as carcass.2.Cover rubber selects a blend of NR and BR3.Has the properties of high elasticity, shock resistance, cold resistance and etc. 4.It can work normally under the conditions of -50℃.5.Suitable for conveying materials outdoors

Send Inquiry

Product Description

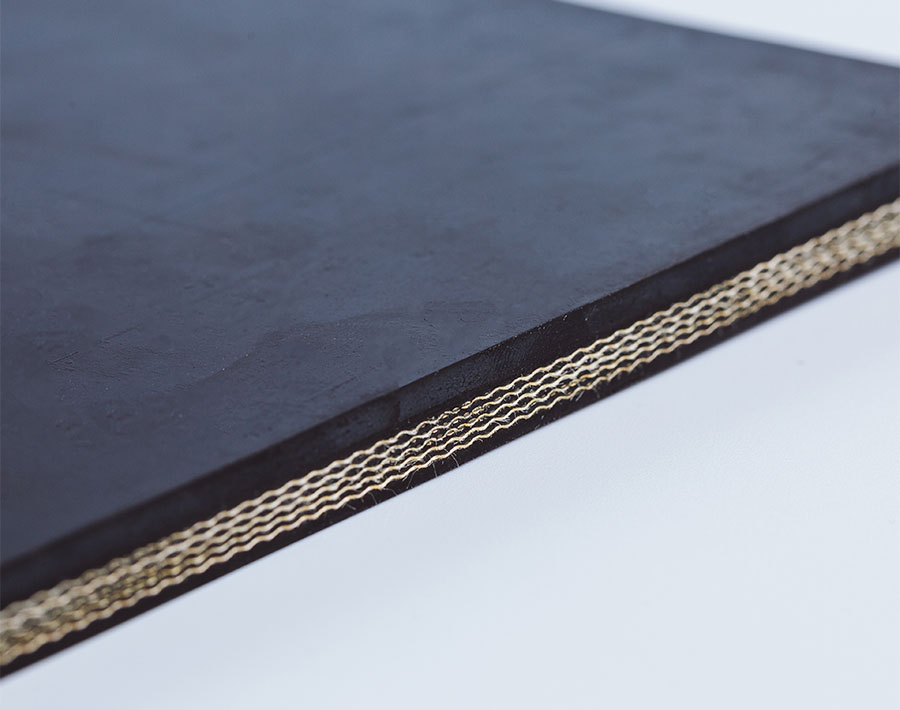

Cold resistant conveyor belt consist of reinforcing core with strength nylon,cotton,polyester,or steel,and cold resistant rubber cover.It can work under -50℃ ~+45℃ a long time,which can be widely used in cold open area or freezing space.

Physical properties of the coating
Projects			Index
			H	D	L
Tensile strength /Mpa Not less than			24	18	15
Elongation /% Not less than			450	400	350
Abrasion loss /mm3 ≤ Not more than			120	100	200
Aging test 70℃×168h		Change ratio of tensile strength	±25	±25	±25
		The elongation rate of change	±25	±25	±25
Cold resistance	Change ratio of tensile strength	C1 (-45℃)	±20
		C2 (-50℃)	±25
	The elongation rate of change	C1 (-45℃)	±20
		C2 (-50℃)	±30
Note: C1-working temperature: -45℃ ~+45℃ .C2-working temperature: -50℃ ~+45℃.

Features：

1. Selects nylon canvas or EP canvas as carcass.

2. Cover rubber selects a blend of NR and BR

3. Has the properties of high elasticity, shock resistance, cold resistance and etc.

4. It can work normally under the conditions of -50℃.

5. Suitable for conveying materials outdoors in freezing space or cold open area.
