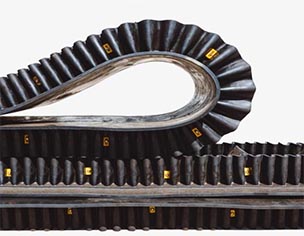

Corrugated Sidewall conveyor belts consist of a base belt, corrugated sidewalls and cleats.It is a special conveyor belt with wavy sidewalls and lateral rubber or polyurethane ribs, which can effectively transport materials from one place to another. This conveyor belt is suitable for conveying various materials such as large particles, small particles, powders, and liquids on horizontal or inclined surfaces. Compared to traditional planar conveyor belts, corrugated sidewall conveyor belts can effectively prevent material overflow and leakage, and can improve conveying efficiency and work safety. Sidewall conveyor belts are suitable for steep angle conveying (up to 90°) of general and bulk goods. This can reduce the number of transfer points during operation. This has a positive outcome in terms of producing a mode of operation that saves energy and capital. Anai Belt ® offers its customers a large portfolio of possible combinations of cleats and sidewalls.Corrugated sidewall conveyor belts are widely used for conveying materials in industries such as mining, metallurgy, building materials, chemical engineering, electric power, and grain. Its main characteristics include wear resistance, tear resistance, corrosion resistance, high temperature resistance, etc., as well as strong tensile strength and tensile strength. In addition, corrugated sidewall conveyor belts can also be used in conjunction with various conveying machinery, such as belt conveyors, bucket elevators, etc., to achieve automated production and logistics transportation.
The material of corrugated sidewall conveyor belts usually consists of three parts: fabric, cladding, and corrugated ribs.
Fabric: Generally, materials such as polyester, nylon, cotton, and cotton hemp blends are used, as well as high temperature resistant and flame retardant aramid fabrics. The quality of the fabric determines the tensile strength, wear resistance, and heat resistance of the conveyor belt.
Cover layer: Generally, materials such as natural rubber, synthetic rubber, or polyurethane are used to increase the friction, wear resistance, and corrosion resistance of the conveyor belt. The material selection of the covering layer should be determined based on the nature of the conveyed material and the working environment.
Waveform sidewalls: Generally, materials such as rubber, polyurethane, and PVC are used to ensure that materials do not overflow and leak from the Corrugated Sidewall conveyor belt, and to maintain the stability of the corrugated sidewalls.
The Sidewalls are produced from a high elasticity and high strength rubber compound and offer excellent flexibility and therefore maximum flexing. Theuse of diagonal fabric for the reinforcement within the Sidewalls ensures maximum elongation of the fabric at the flexing points as well as increasing tensile strength, again increasing the life of the Sidewall.
Sidewalls and cleats are hot vulcanized to the base belt to guarantee adhesion and durability.
In addition to the above three materials, corrugated sidewall conveyor belts may also include other parts, such as lateral reinforcement layers, liner layers, and reinforcement layers, to improve the strength and durability of the conveyor belt. Different applications and requirements may require different combinations of materials, so these factors should be fully considered when selecting and using corrugated sidewall conveyor belts.
The main characteristics of corrugated sidewall conveyor belts are as follows:
The corrugated sidewall can effectively prevent the overflow and leakage of materials, reducing environmental pollution and the occurrence of safety accidents.
The corrugated sidewalls and lateral ribs can fix the material and maintain its stability, improving conveying efficiency and accuracy.
This conveyor belt is suitable for conveying various materials, including large particles, small particles, powders, and liquids, on horizontal or inclined surfaces.
Corrugated sidewall conveyor belts have strong wear resistance, tear resistance, corrosion resistance, and high temperature resistance, which can adapt to various complex working environments.
The conveyor belt can be used in conjunction with various conveying machines to achieve automated production and logistics transportation.
The maintenance and replacement of corrugated sidewall conveyor belts is relatively convenient, which can save labor and time costs.
Due to the existence of corrugated sidewalls, the width of the conveyor belt can be relatively narrow, thereby saving production space and equipment costs.
In general, corrugated sidewall conveyor belt is an important material conveying equipment with simple structure, complete functions, and strong durability.
Corrugated sidewall conveyor belts have the following advantages over other types of conveyor belts:
Effective prevention of material spillage and leakage: The corrugated sidewall can effectively fix materials and prevent them from spilling and leaking during transportation, reducing environmental pollution and potential safety hazards in the workplace.
Improve conveying efficiency and accuracy: corrugated sidewalls and lateral ribs can fix materials and maintain their stability, thereby improving conveying efficiency and accuracy.
Capable of adapting to various working environments and material characteristics: Corrugated sidewall conveyor belts adopt different material combinations, which can adapt to various complex working environments and material characteristics, such as high temperature resistance, wear resistance, corrosion resistance, etc.
Improve production automation: Corrugated sidewall conveyor belts can be used in conjunction with various conveying machines to achieve automated production and logistics transportation, improving production efficiency and quality.
Convenient maintenance and replacement: The corrugated sidewall conveyor belt is relatively convenient to maintain and replace, which can save labor and time costs.
Space and equipment costs can be saved: Due to the existence of corrugated sidewalls, the width of the conveyor belt can be relatively narrow, thereby saving production space and equipment costs.
In general, corrugated sidewall conveyor belts have the advantages of simple structure, complete functions, and strong durability, making them a cost-effective material conveying equipment.
Corrugated sidewall conveyor belt has the characteristics of simple structure, complete functions, and strong durability.It is the most efficient and reliable systemfor steep angle or vertical conveying bulk material,Corrugated sidewall conveyor belts are playing an increasingly important role in logistics transportation and automated production.
Belt width: | 400-2000mm |
Fabric: | Cotton Nylon Polyester |
Ply: | 3-10 |
Belt thickness: | 6-60mm |
Top rubber thickness: | 1.5-30mm |
Bottom rubber thickness: | 0-30mm |
Fabric tensile strength: | 100-800N/mm |
Rubber tensile strength: | 7-25Mpa |
Capacity: | 1-800t/h |
HeBei Anai Rubber Belt Co.,Ltd was established in 1993 and is located in AnGuo city, HeBei province,enjoying convenient transportation and beautiful environment. We have world’s leading production equipment and professional engineering and technical experts. High quality and technology is our competitive advantage.Advanced production engineering make us capable to manufacture all types of conveyor belt,even tailored to different customer needs..We have obtained the ISO9001/14001/45001 Certificates.
If you want to know more about the conveyor belt, please collect the shop and contact us, and we can provide you with free samples.
