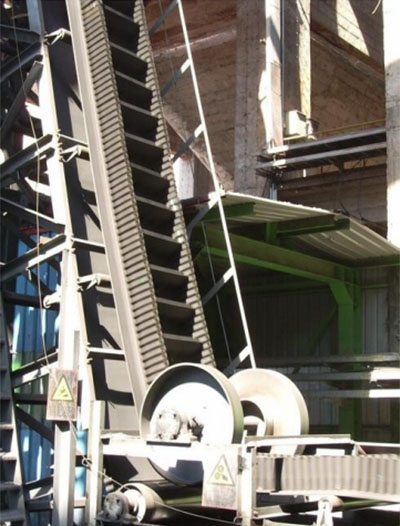

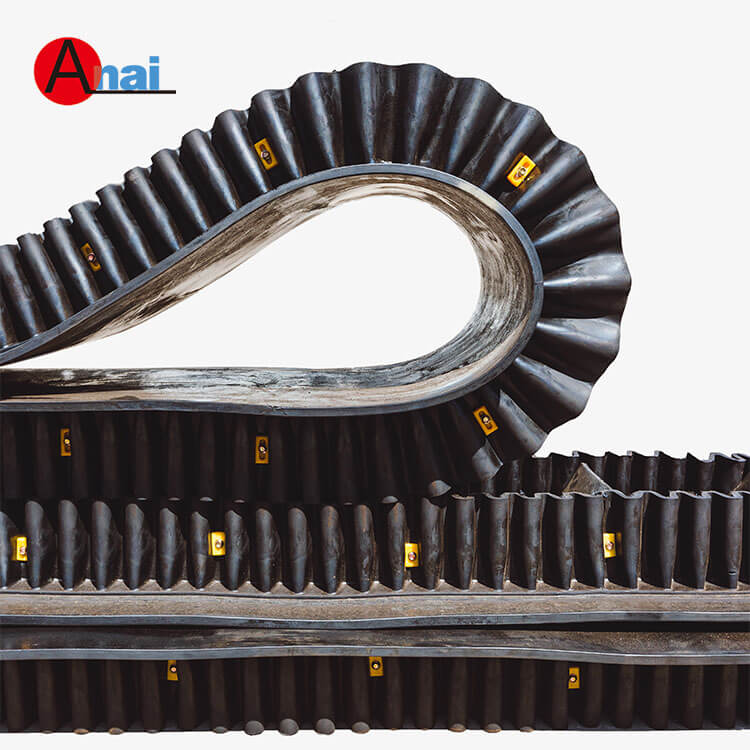

Sidewall Conveyor Belt

1. Sidewall conveyor belt consists of base belt, sidewalls and cleats.

2. Often used to prevent materials falling down.

3. Suitable for steep angle conveying (up to 90°) of general and bulk goods.

4. Help maximize the product load capacity,increase the overall efficiency of your conveyor system.

5. Mainly used in Quarries,Cement works,Foundries,construction industry ,salt mining,fertilizer,chemical industry,recycling,industry.

General Information

Sidewall conveyor belts are suitable for steep angle conveying (up to 90°) of general and bulk goods. This can reduce the number of transfer points during operation. This has a positive outcome in terms of producing a mode of operation that saves energy and capital. Anai Belt ® offers its customers a large portfolio of possible combinations of cleats and sidewalls.

The Sidewalls are produced from a high elasticity and high strength rubber compound and offer excellent flexibility and therefore maximum flexing. The

use of diagonal fabric for the reinforcement within the Sidewalls ensures maximum elongation of the fabric at the flexing points as well as increasing tensile strength, again increasing the life of the Sidewall.

General Application

●Quarries

●Sand pits

●Concrete mixing plants

●Cement works

●Thermal power plants

●Silos

●Foundries

●Sugar factories

●Salt works

Technical Data

Belt width: 400-2000mm Fabric: Cotton Nylon Polyester Ply: 3-10

Belt thickness: 6-60mm

Top rubber thickness: 1.5-30mm Bottom rubber thickness: 0-30mm Fabric tensile strength: 100-800N/mm Rubber tensile strength: 7-25Mpa Capacity: 1-800t/h

Standard: ISO AS RMA JIS DIN Color: Black

System Advantages

●No Transfer Points

●No Spillage with steep angle conveying.

●Maximum utilization of space.

●Minimum Maintenance, Long Belt Life.

●Wide Range of Materials can be handled.

Low Power Requirement, Quiet Smooth Running.

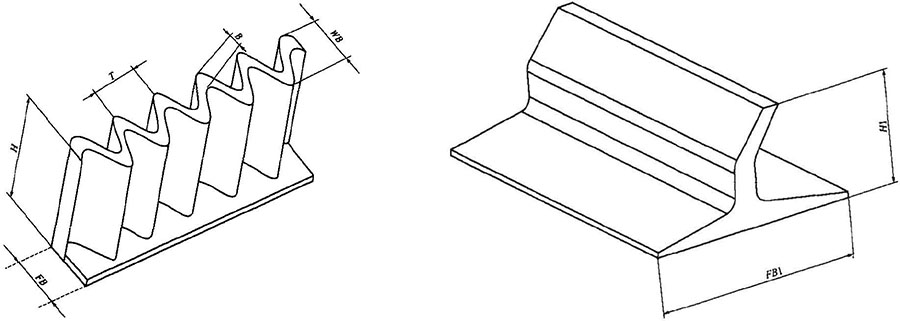

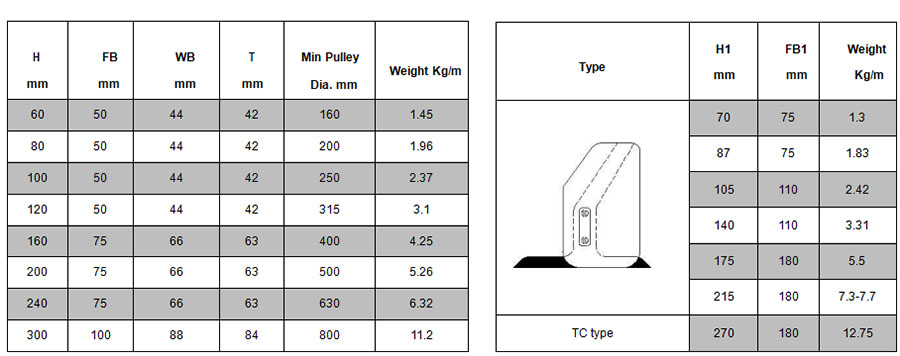

Sidewalls                                                                                     Cleats

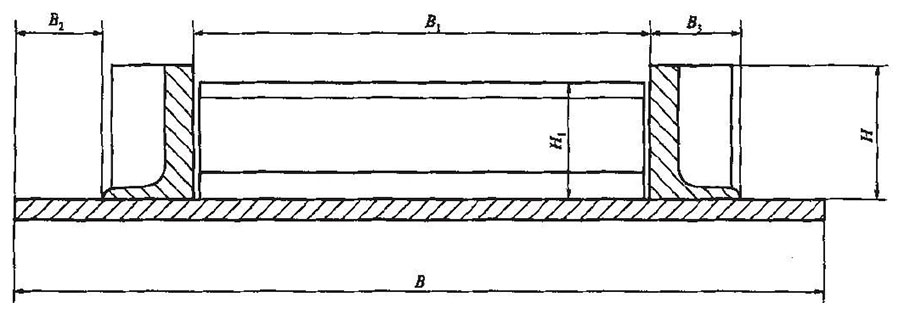

B — Base belt width B1 — Cleat width B2 — Free space

B3 — The wave bottom width

H — Sidewall height

H1 — Cleat height
