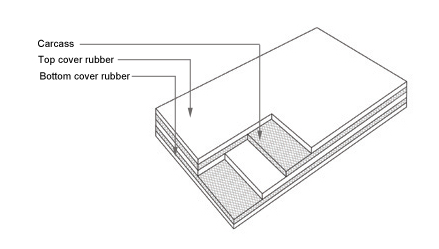

1.EP conveyor belts are composed of polyester canvas knitted by warp polyester and weft poly-amide. With the advantages of light weight,high-strength, good impact resistance,excellent troughability, low elongation and good impact stability ever heated, it is the developing trend of fabric conveyor belt.
A.Standards:
GB/T7984-2013, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etc.
B.Features:
Good flexibility, groove formation property and cost-effective. Available in a variety of specifications and sizes to suit customer needs.
C.Application:
Applicable to long-distance, high capacity, high-speed delivery of materials under the conditions.
Used in mining, quarries, chemical plants, architectural industry and etc.
2.Parameters
Fabric Material | Fabric structure | Type | Ply Thickness mm | Tensile Strength (N/mm) | Cover thickness (mm) | Width mm | Length m | ||||||
Warp | Weft | 2-ply | 3-ply | 4-ply | 5-ply | 6-ply | Top | Bottom | |||||
EP | Polyester |
Poly-amide
| EP100 | 0.85 | 200 | 300 | 400 | 500 | 600 | 2-12 | 1-5 | 350~2500 | ≤300 |
EP125 | 0.9 | 250 | 375 | 500 | 625 | 750 | |||||||
EP150 | 0.9 | 300 | 450 | 600 | 750 | 900 | |||||||
EP200 | 1.1 | 400 | 600 | 800 | 1000 | 1200 | |||||||
EP250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
EP300 | 1.45 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
EP350 | 1.65 | 700 | 1050 | 1400 | 1750 | 2100 | |||||||
EP400 | 1.75 | 800 | 1200 | 1600 | 2000 | 2400 | |||||||
EP500 | 2.55 | 1000 | 1500 | 2000 | 2500 | 3000 |
3.Physical Properties of rubber belting Cover (before aging)
Grade | Tensile Strength/Mpa ≥ | Elongation at break /% ≥ | Abrasion Loss/mm3 ≤ |
H | 24 | 450 | 120 |
D | 18 | 400 | 100 |
L | 15 | 350 | 200 |
Notes: Grade H-used for transporting sharp, abrasive materials which can damage belts badly. Grade D-used for transporting highly abrasive materials. Grade L-used for transporting medium-abrasion materials. |
4.Ply adhesion:
Item | Ply to ply | Rubber cover to ply | |
Rubber cover thickness ≤1.5mm | Rubber cover thickness >1.5mm | ||
All samples average value/ (N/mm) ≥ | 4.5 | 3.2 | 3.5 |
All samples min peak value/ (N/mm) ≥ | 2.9 | 2.4 | 2.9 |
Note: All samples max peak value is not more than 20N/mm. |
5.Types:
Besides General-used EP conveyor belt, there are Fire-retardant type, Cold-resistant type, Wear-resistant type, Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type, High-grade type and etc.
Production process:complete product line,Advanced equipment to guarantee quality from the details
Mixing:
Calendering:4 rollers celender machine is able to stick rubber on both side of the fabric in one time.This can reduce the strength loss of the rubber during the process.
Forming:The forming tension is even between different plies,which can avoid wrinkled fabric and guarantee an even thickness of belt core.
Vulcanization:
Inspection:
Delivery:
Inspection
Raw material inspection:
End product inspection:
After-sale service
Online support;
Video technical support
Company profile
HeBei Anai Rubber Belt Co.,Ltd is a professional conveyor belt manufacturer from china with an annual output capacity of about 50,000,000㎡. Established in 1993, we have nearly 30 years experience in research, development and production of conveyor belts, with a complete line of advanced manufacturing and testing equipments. Our main products include general purpose fabric conveyor belt , special purpose fabric conveyor belt, sidewall conveyor belt, steel cord conveyor belt,conveyor parts and so on.
We have built close cooperative relationship with world-wide steel mills,cement enterprises,power plants and mining bureaus.Excellent product performance and perfect after-sales service system help us wining the trust of global customers.Our products are much in demand on oversea markets as USA,Canada,Europe,Australia,Japan,Middle East and Southeast Asia.Top-ranking skills,high-class quality,top service and good reputation,all these forged the brand of Anai rubber.For more information, please email or call us.
Certificates
FAQ
Q1. Are you a manufacturer or a trading company? A:We are a professional manufacturer with 20 years of industry experience
Q2. What about the lead time? A: 2--3 days for sample 15--30 days for mass production. If urgent,we have green channel.
Q3. How to pay?
1) T/T or L/C through bank account
2) Select Alibaba Trade Assurance Service
Q4. How about package?
1) Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole
2) Outer is packed with one ply water-proof PP fabric
Q5. Do you have any MOQ limit for conveyor belt order? A: Low MOQ, 1pc for sample checking is available
Q6. What are the advantages compared with other suppliers? A: We have 6 production lines, a production base of 10300 square meters, an annual output of 900 million square meters, 8900 enterprises believe us, and we are highly praised
Q7. Do you have pre-sale service? A: Of course, we have two engineers at the same time to serve you, can help you choose the most suitable conveyor belt for you, you can also visit our production base, we welcome you very much.
