Heat Resistant Conveyor Belt
1.The heat resistant conveyor belt is made of the multilayer canvas covered with the heat resistant rubber.2.Characterized resistance to high temperatures, premature ageing and abrasive wear,3.Specifically engineered to convey high-temperature materials under even the most demandin
Send Inquiry
Product Description

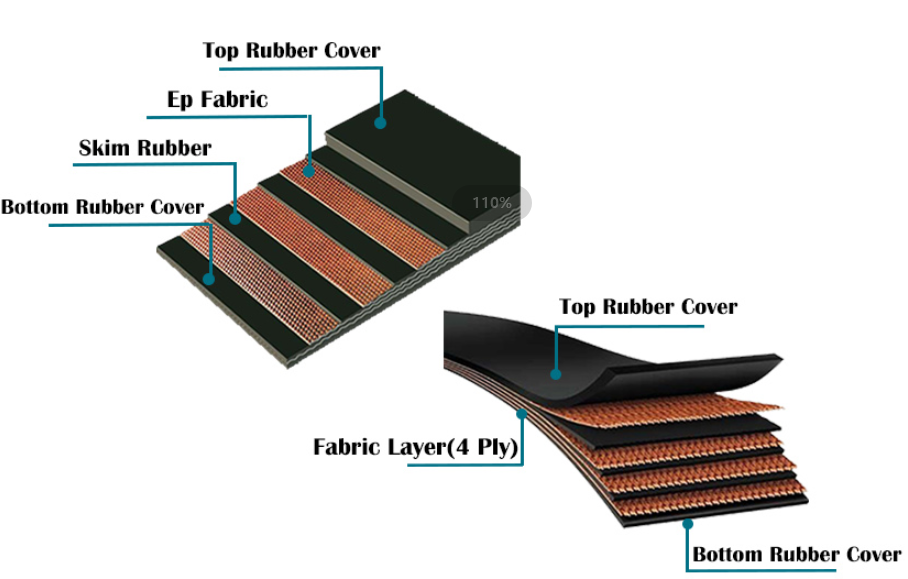

1.The heat resistance conveyor belt is made of the multilayer rubber cotton canvas ‘polyester cotton’ covered with the high temperature or heat resistant rubbers, which are bonded through high temperature vulcanization, it is applicable to conveying of the coke, cement, clinker and hot casting etc.
2.The heat resistant conveyor belt contains four types.
Type I; it is able to resist the test temperature of no more than 100℃, the max. short-time operating temperature is 150℃，the symbol is T1.
Type II; it is able to resist the test temperature of no more than 125℃, the max. short-time operating temperature is 170℃，the symbol is T2.
Type III; it is able to resist the test temperature of no more than 150℃, the max. short-time operating temperature is 200℃，the symbol is T3.
Type IV; it is able to resist the test temperature of no more than 175℃, the max. short-time operating temperature is 230℃，the symbol is T4.
3.Physical Properties of Heat Resistant Conveyor Belts
Physical Properties of the resistance to the tropical covering | |||||
projects | type | ||||
T1 | T2 | T3 | T4 | ||
Allowable variation range | |||||
Hardness | Difference between aging and aging (IRHD) | +20 | +20 | ±20 | ±20 |
Maximum value after aging (IRHD) | 85 | 85 | 85 | 85 | |
Tensile strength | Rate of performance change /% | -25 | -30 | -40 | -40 |
Minimum Value after aging /Mpa | 12 | 10 | 5 | 5 | |
Elongation at break | Rate of change after aging /% | -50 | -50 | -55 | -55 |
Minimum Value after aging /% | 200 | 200 | 180 | 180 | |
4.Ply adhesion:
Item | Ply to ply | Rubber cover to ply | |
Rubber cover thickness ≤1.5mm | Rubber cover thickness >1.5mm | ||
All samples average value/ (N/mm) ≥ | 4.5 | 3.2 | 3.5 |
All samples min peak value/ (N/mm) ≥ | 2.9 | 2.4 | 2.9 |
Note: All samples max peak value is not more than 20N/mm. | |||
Features:
1. The heat resistant conveyor belt is made of the multilayer canvas covered with the heat resistant rubber.
2. Characterized resistance to high temperatures, premature ageing and abrasive wear,
3. Specifically engineered to convey high-temperature materials under even the most demanding heavy-duty service conditions.
4. It can withstand continuous material temperatures as high as 180℃.
5. Applicable to conveying of the coke, cement, clinker and hot casting etc.
