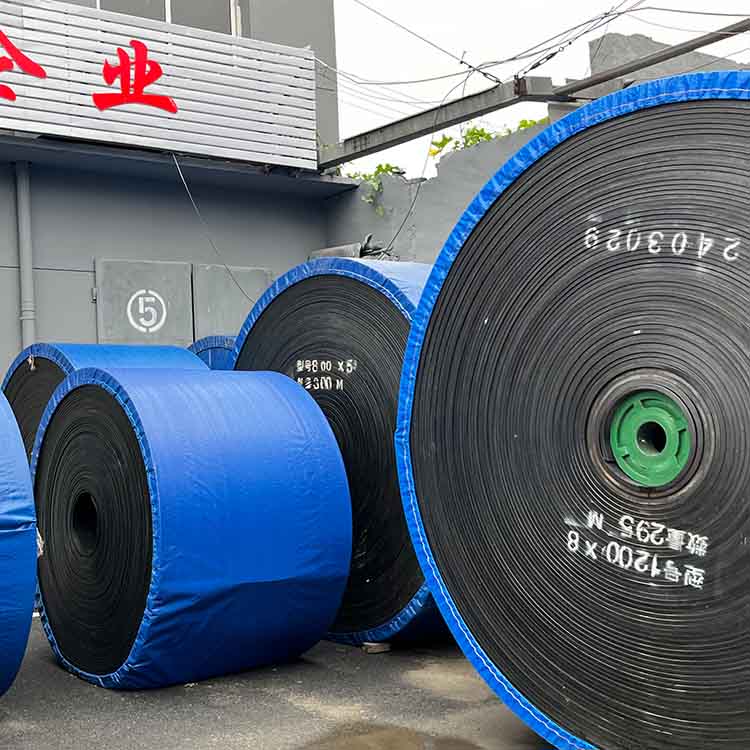

Rubber Conveyor Belts

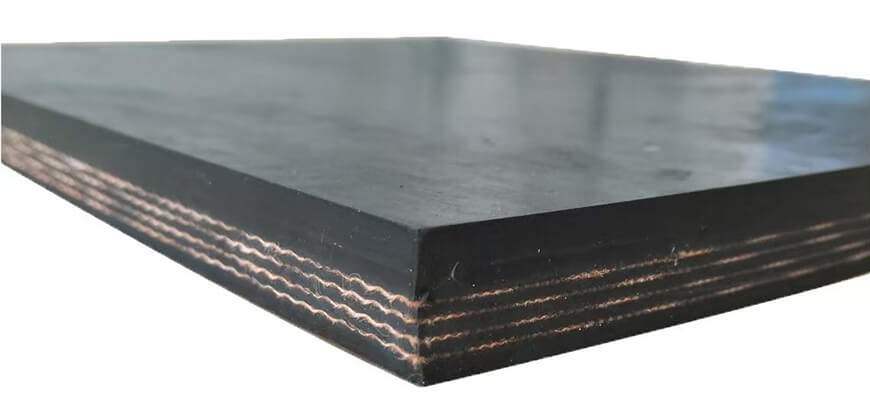

Rubber conveyor belts are the most common way to convey bulk materials. It is widely used in many industries, such as mining, manufacturing, agriculture, and logistics. Rubber conveyor belt typically consists of multiple layers, including a top cover, a bottom cover, and a reinforcing carcass
Send Inquiry
Product Description
Rubber conveyor belts are the most common way to convey bulk materials. It is widely used in many industries, such as mining, manufacturing, agriculture, and logistics. Rubber conveyor belt typically consists of multiple layers, including a top cover, a bottom cover, and a reinforcing carcass made of fabric or steel cords, which provide strength and stability. Rubber conveyor belts are designed to withstand harsh conditions, including abrasion, impact, and extreme temperatures, making them essential for efficient material handling and production processes.
About us
Established in 1993, Anai has 31 years experience in research, development and production of conveyor belts. With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards, such as DIN, AS, BS, JIS, SANS, RMA, etc.
We have obtained the ISO9001/14001/45001 Certificates.We believe great quality make us different and bring higher value.
Why Choose Our Rubber Conveyor Belts?
✅ Unmatched Durability – Built to withstand heavy loads and harsh environments.
✅ Enhanced Efficiency – Smooth operation for seamless material handling.
✅ Customizable Solutions – Tailored to fit your specific needs and applications.
✅ Eco-Friendly Options – Sustainable materials for a greener future.
✅ Global Trust – Trusted by industries worldwide for reliable performance.
Our Product Range
Textile conveyor belt: Constructed with multiple layers of fabric, typically made from polyester, nylon, while the cover rubber provide abrasion, cut, impact, heat, fire and chemical resistance properties.
Textile Type | EP100-600/NN100-600 | EP100-600/NN100-600 |
Cover Rubber Grade | 8MPa,10MPa,12MPa,15MPa, 18MPa,20MPa,24MPa, HR100-400℃ FR,MOR | DIN-X,Y,W,Z RMA-1, RMA-2 SANS1173-X,M,N,A AS1332-M,N,A,E,F,S |
Belt Width | 500MM-2500MM | 18"-94" |
Belt Tensile Strength | 200N/MM-3000N/MM | 330PIW,440PIW |
Top+Bottom Thickness | 3+1.5 , 4+1.5 , 4+2 , 5+1.5 , 5+2 , 6+2 , 6+3 , 8+3 , 10+3 | 3/16"+1/16" , 1/4"+1/16" |
Belt Thickness | 5-30MM | |
Belt Edge Type | Mould Edge, Cut Edge | |

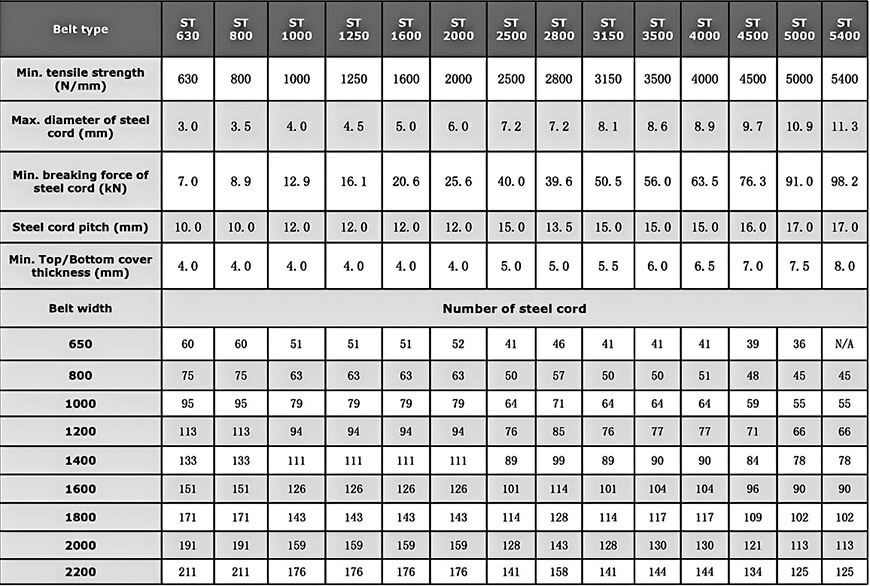

Steel cord conveyor belt: Because of its innate strength, good handling characteristics and low elongation (stretch), steel cord belting is primarily used to convey materials over long distances; in some cases over several kilometers.

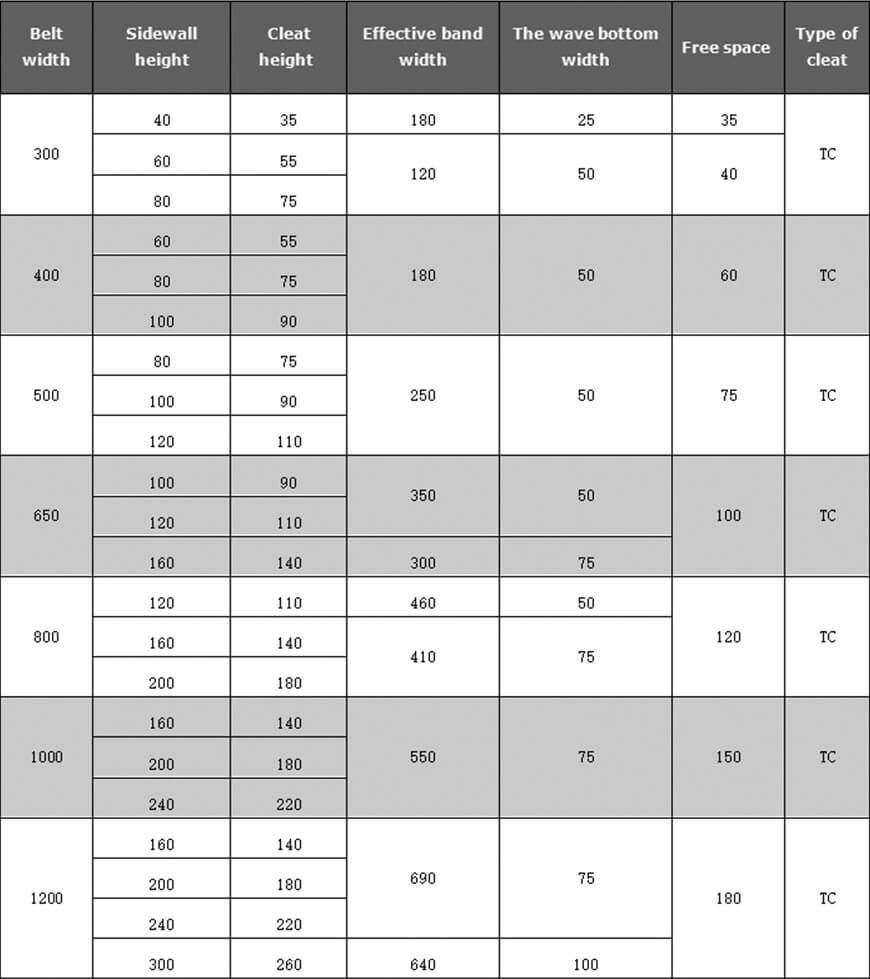

Corrugated sidewall conveyor belt: Consist of a base belt, corrugated sidewalls and cleats.Sidewalls and cleats are hot vulcanized to the base belt to guarantee adhesion and durability.It is the most efficient and reliable system for steep angle or vertical conveying bulk material.
Patterned conveyor belt: Patterned conveyor belt is composed of base belt and patterns.Patterns are moulded and vulcanised in one continuous production process together with the base belt. There are pattern shapes of Open V, Closed V, Y Type, U Type .The type and height of the pattern is different, and can be designed according to the actual needs of the customer.
Belt width | 300mm -1600mm |
Pattern height | 5,6,8,10,15,17,20,25,32 (mm) |
Pattern pitch | 100,200,250,300,330,400,500 (mm) |
Note:the pattern shape can be designed according to user needs. | |
Get a Free Quote Today!
Ready to upgrade your conveyor system? Contact us now for a free consultation and quote.
📞 Call Us: +86 15030159202(WhatsApp)
🌐 Visit: www.anaibelt.com
FAQs
Q: What materials are used in your rubber conveyor belts?
A: We use premium-grade rubber and reinforced materials to ensure strength and longevity.
Q: Can I get a custom-sized conveyor belt?
A: Absolutely! We specialize in creating custom solutions to fit your unique requirements.
Q: Do you offer international shipping?
A: Yes, we ship our products worldwide to meet the needs of our global clients.
Let’s Keep Your Business Moving Forward – Choose Hebei Anai Rubber Belt Co.,Ltd for Premium Rubber Conveyor Belts!
